MANNOL 2103 20L MANNOL Hydro ISO 68
ISO VG 68 HLP Mineral Hydraulic Oil

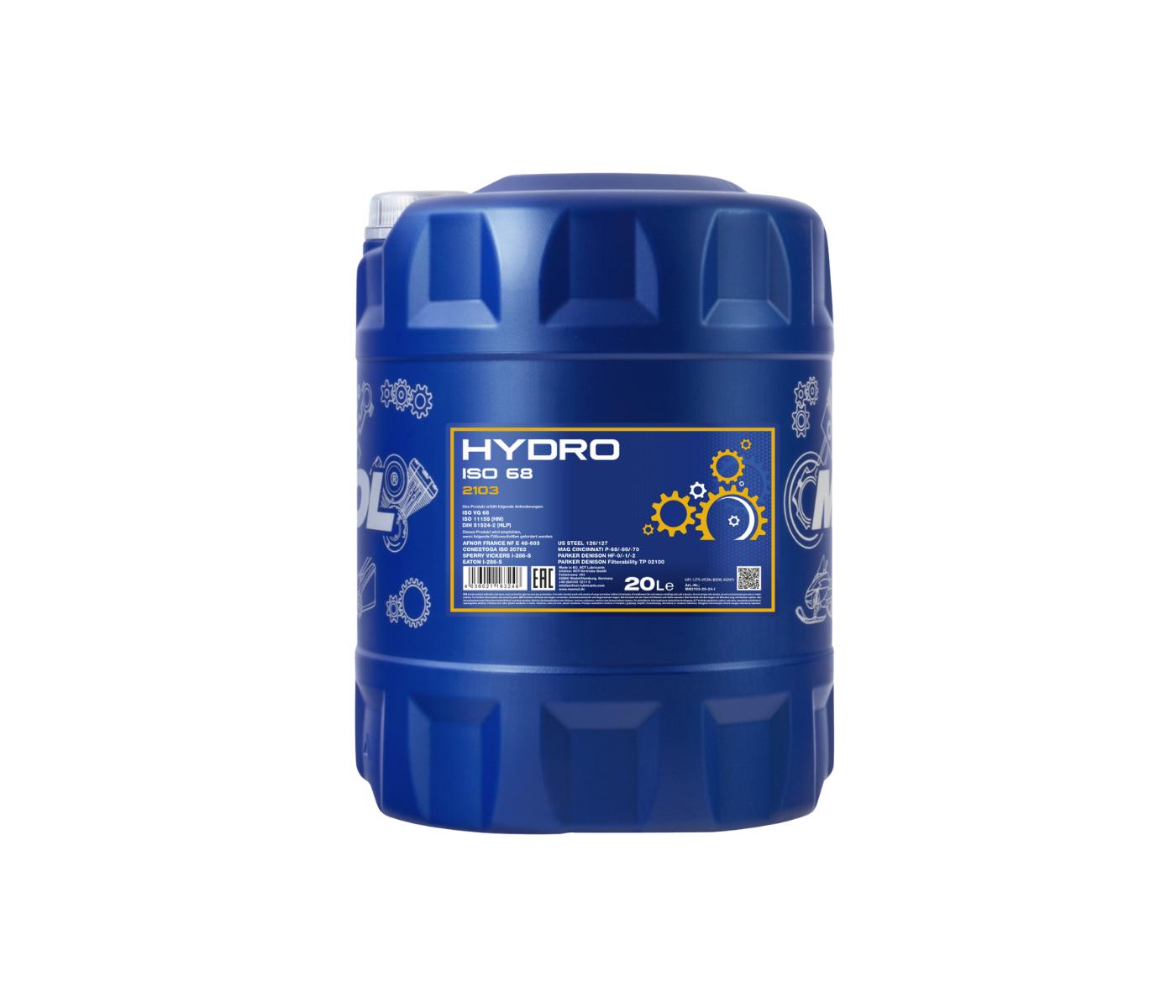

MANNOL 2103 Hydro ISO 68 20L

All-season ISO VG 68 mineral hydraulic oil for stationary and mobile industrial hydraulic systems operating under high loads, pressures and temperatures.

$247.70
SKU: MN2103-20
✓ISO VG 68
✓DIN 51524-2 HLP
✓ISO 11158 HM
✓Industrial & Mobile Hydraulics
Fast Shipping Secure Checkout Professional Grade
⚙️

ANTIWEAR PROTECTION

Advanced additive technology helps minimise hydraulic pump and precision-component wear for reliable long-term operation.

🔥

THERMAL & OXIDATION STABILITY

High thermal stability helps control deposits and maintain dependable hydraulic performance at elevated temperatures.

🛡️

CORROSION PROTECTION

Protects compatible metals and alloys against corrosion caused by acids, water and demanding operating environments.

💧

FOAM & WATER CONTROL

Excellent demulsifying and antifoaming properties support efficient hydraulic pump operation and long fluid service life.

i

Product Information

All-season mineral hydraulic oil created for hydraulic devices of stationary and mobile equipment operating in standard and high operating temperatures. It was developed taking into account the requirements for industrial hydraulic systems operating in the conditions of high loads, pressures, temperatures and/or velocities.

Specifications

ISO Viscosity Grade 68 DIN 51524-2 (HLP) ASTM D6158 ISO 11158 (HM)

Recommendation

AFNOR FRANCE NF E 48-603 CONESTOGA ISO 20763 EATON I-286-S MAG CINCINNATI P-69 PARKER DENISON HF-0 PARKER DENISON HF-1 PARKER DENISON HF-2 PARKER DENISON Filterability TP 02100 SPERRY VICKERS I-286-S US STEEL 126 US STEEL 127 GB 111118.1 SEB 181222

Product properties:

• It contains antiwear, anti-oxidising, anticorrosion and antifoaming additives.
• It has good antiwear properties that minimise the wear of the parts related to hydraulic pumps thus ensuring their long service life;
• Modern cleaning-dispersing additives ensure an ideal cleanliness of hydraulic system parts thus also protecting precision pairs from wear and extend the equipment life;
• A high thermo-oxidative and thermal stability reduce the formation of all types of deposits and corrosive substances that increase the reliability of subsystems’ operability (valves, hydraulic directional valves, etc.) and simultaneously distinguishes itself by an excellent filtering ability;
• Due to good anticorrosion properties, it protects surfaces of all used metals and alloys against a corrosive impact of acids and water that significantly reduce the maintenance and repairs costs;
• It is characterised by excellent demulsifying properties, a low freezing temperature and a long service life;
• The resistance to foam formation enhances the efficiency of hydraulic pumps;
• It is neutral in regards to all sealing materials and paint-and-lacquer coatings compatible with mineral oils. It prevents leakages thus reducing buying costs.
It is recommended to be used as a power fluid for industrial hydraulic systems:
- Stationary equipment (pressing machines, elevators, moulding machines, robots, industrial machines, forming machines, etc.);
- Mobile equipment (construction, highway, mining, tree harvesting, various municipal and special equipment, etc.);
- The following types: DENISON, EATON VICKERS, GEROTOR, GRESEN, HPM, HYDRECO, WORTHINGTON, etc.
- Where there are syringe, geared, impeller, axial piston pumps in compliance with manufacturer’s requirements;
- When the oil standards DIN 51524 Part 2 (HLP) or ISO 11158 (HM) are required to be used.
In order to properly use it, thoroughly read the user’s manual of the equipment!
Documents

Technical Downloads

2 files
PDF 2103_TDS.pdf Technical Data Sheet (TDS) PDF 2103_SDS.pdf Safety Data Sheet (SDS)
Perfect For
🏭
INDUSTRIAL HYDRAULICS Suitable for compatible presses, elevators, moulding machines, robots and other stationary hydraulic equipment.
🏗️
MOBILE EQUIPMENT Designed for compatible construction, highway, mining, forestry, municipal and special-purpose machinery.
⚙️
HYDRAULIC PUMPS Suitable for compatible geared, impeller, axial-piston and other hydraulic pump systems.
🔧
HLP / HM SYSTEMS Designed for systems requiring DIN 51524-2 HLP or ISO 11158 HM hydraulic oil.
⚙️
ISO VG 68Designed for compatible hydraulic systems requiring ISO viscosity grade 68.
📋
DIN HLPMeets the listed DIN 51524-2 HLP specification.
💧
DEMULSIFYING PERFORMANCEHelps separate water and maintain dependable hydraulic fluid performance.
🛡️
SEAL COMPATIBILITYNeutral to compatible sealing materials and paint-and-lacquer coatings suitable for mineral oils.

Reliable ISO 68 Protection for Industrial Hydraulic Systems

MANNOL 2103 Hydro ISO 68 is an all-season mineral hydraulic oil designed for stationary and mobile equipment, providing dependable wear protection, thermal stability, corrosion resistance and efficient operation of compatible hydraulic pumps and systems.
