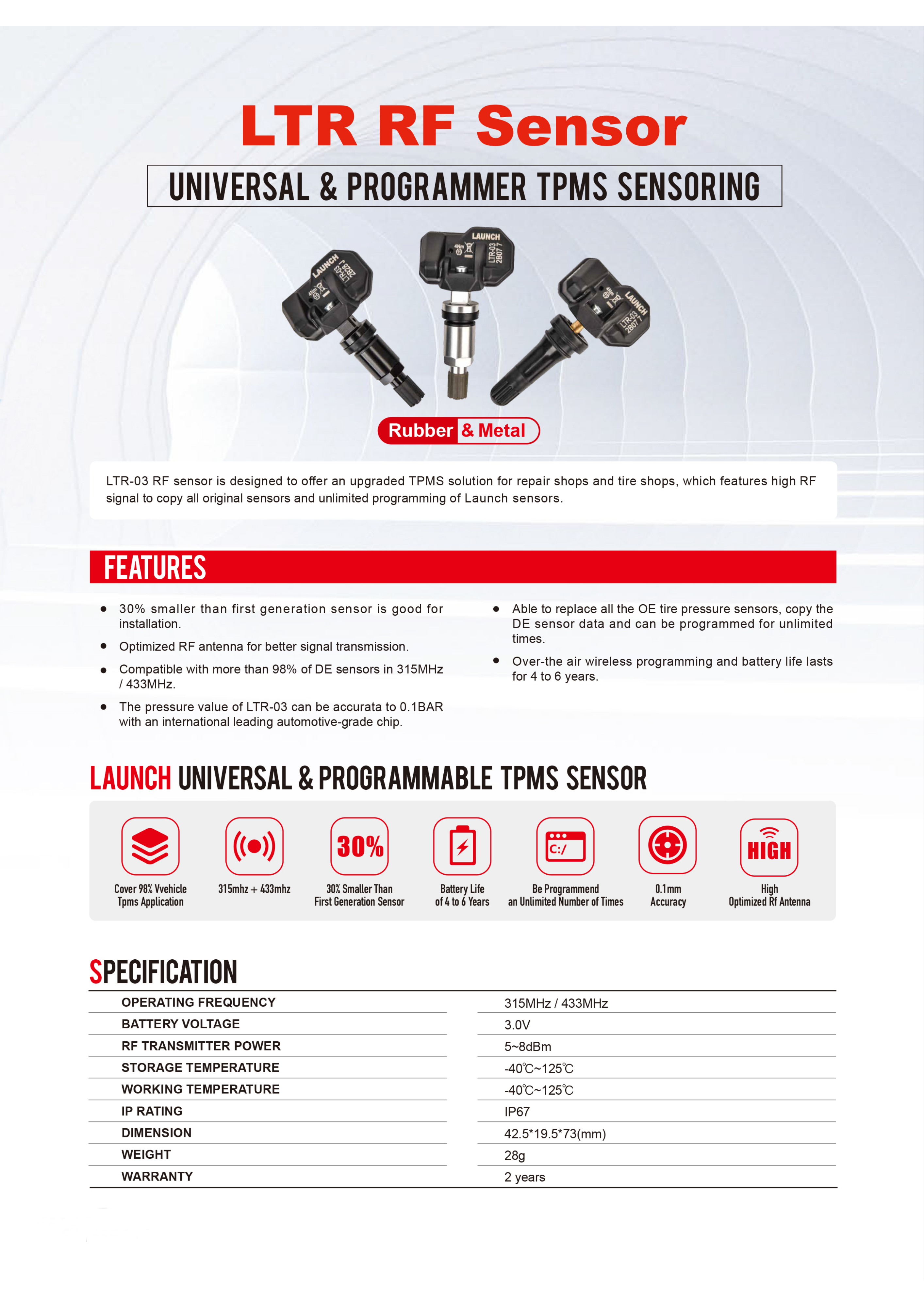

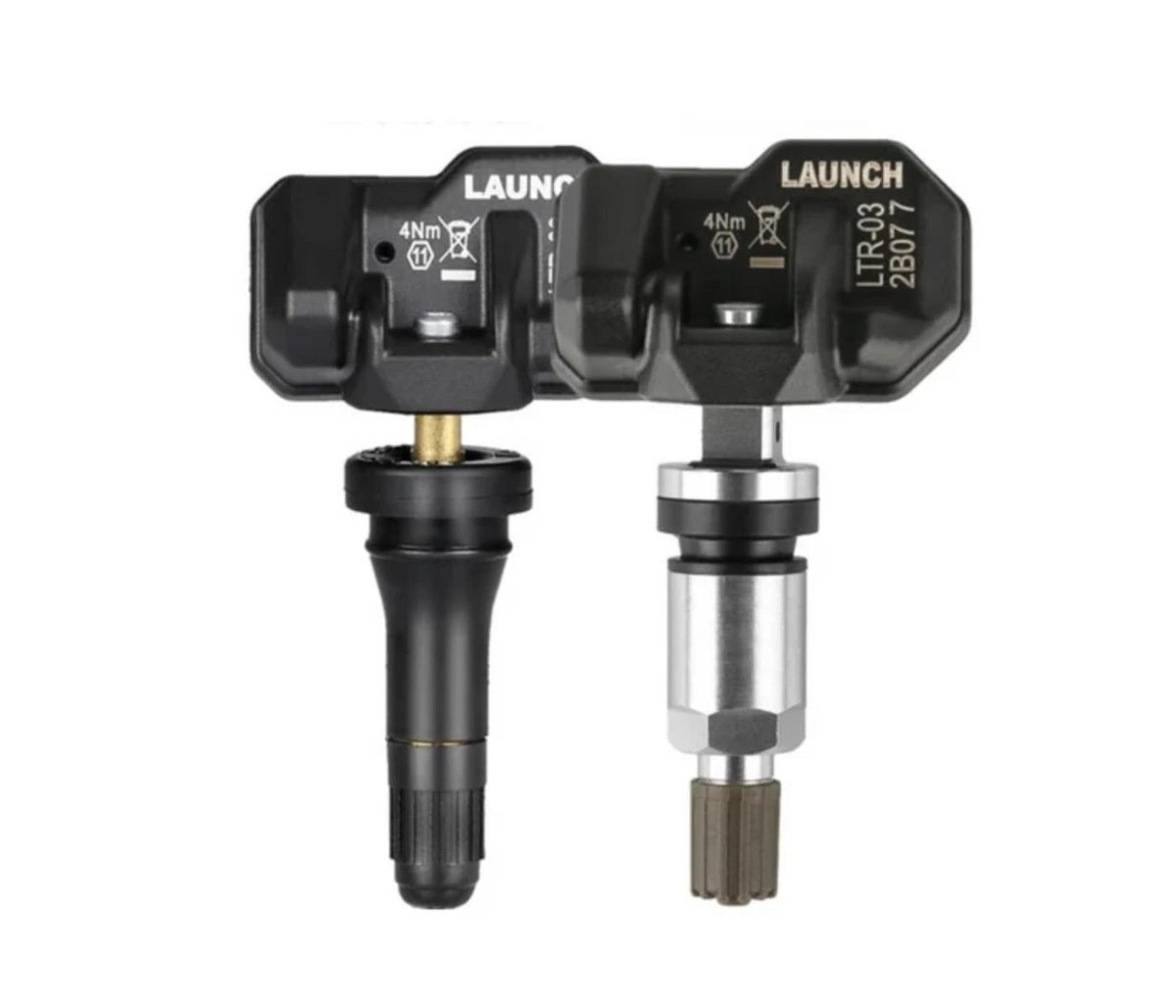

LAUNCH RF SENSOR LTR-03 Universal tpms sensor

The Launch LTR-03 RF Sensor is a universal and programmable TPMS sensor designed to provide an upgraded tire pressure monitoring solution for repair shops and tire service centers. It features a high RF signal that can copy original sensor data and supports unlimited programming with Launch TPMS tools. The sensor is designed to replace most OE tire pressure sensors and is compatible with over 98% of vehicles using 315 MHz and 433 MHz frequencies.

The LTR-03 sensor is 30% smaller than first-generation sensors, making installation easier while maintaining strong signal transmission through an optimized RF antenna. It offers high accuracy, measuring tire pressure values to 0.1 bar, and includes a long battery life of 4 to 6 years. The sensor is available with rubber or metal valve options, providing flexibility for different vehicle and wheel requirements.

• Operating Frequency: 315 MHz / 433 MHz

• Battery Voltage: 3.0 V

• RF Transmitter Power: 5–8 dBm

• Working Temperature: −40°C to 125°C

• Storage Temperature: −40°C to 125°C

• IP Rating: IP67

• Dimensions: 42.5 × 19.5 × 73 mm

• Weight: 28 g

• Warranty: 2 years

Key Features

• Covers over 98% vehicle TPMS applications

• Replace OE tire pressure sensors and copy sensor data

• Unlimited reprogramming capability with Launch TPMS tools

• 0.1 bar pressure accuracy

• High-performance RF antenna for improved signal transmission

• Battery life of 4–6 years

• Available with rubber or metal valve stems
