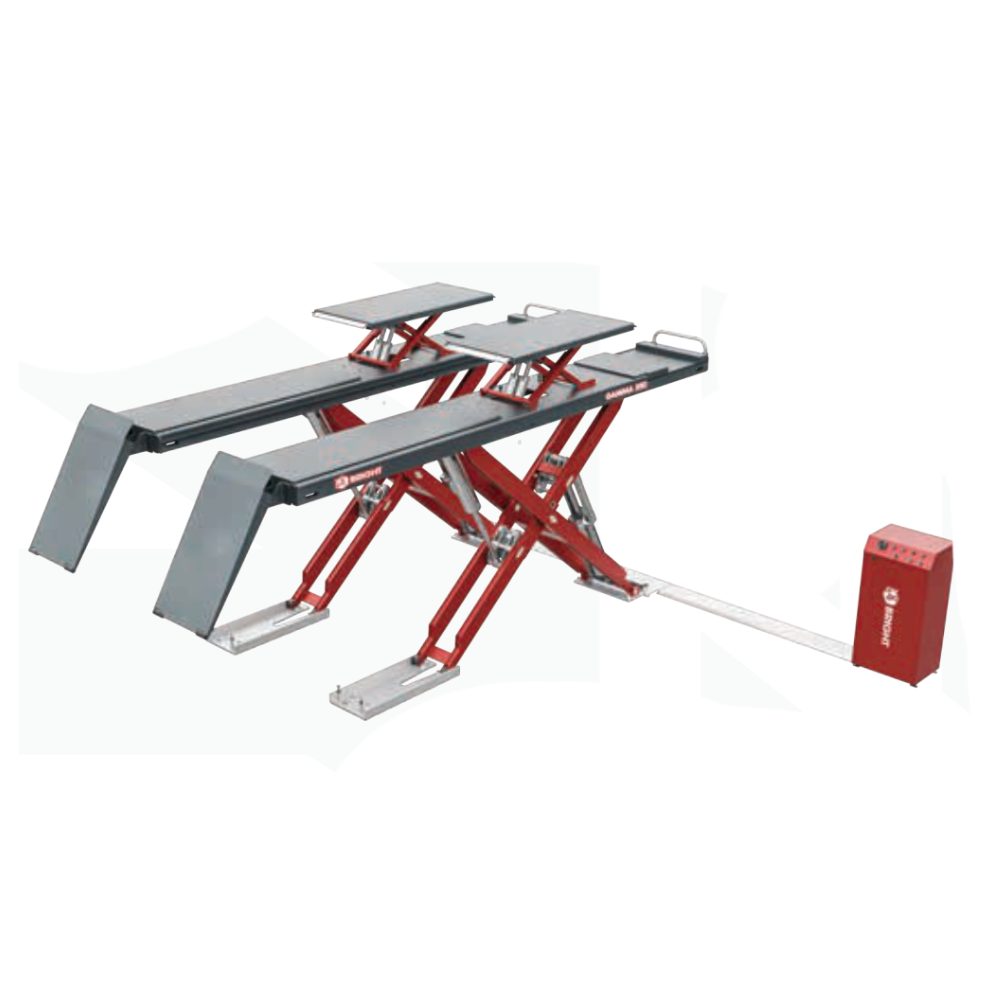

BRIGHT GAMMA 550/WT52 is a premium ultra-thin mother-child double-deck scissor lift professionally customized for full four-wheel alignment service, CE-certified flagship model of BRIGHT (Huoying) auto equipment series, widely adopted by premium auto repair shops, alignment specialist workshops and 4S service centers globally. Designed for both surface-mounted floor installation and optional recessed underground setup without complicated foundation digging, it perfectly fits regular passenger cars, large SUVs, MPVs, new energy EVs and light commercial vans with diversified wheelbase specs.
1. Heavy-Duty Structural Build
All scissor arms adopt thickened 16Mn manganese steel (55mm thick arm plate) with integrated bending forming; four oversized Φ150mm opposing hydraulic cylinders on mother lift + independent dual-cylinder layout on child lift for uniform stress distribution, effectively avoiding platform deformation under full load. Strictly passed 120% dynamic load test & 150% static overload certification, with global product liability insurance covered by BRIGHT factory. Platform flatness tolerance ≤1mm at no load, ≤2mm under full rated load to guarantee precise alignment reading accuracy.
2. Bidirectional Telescopic Secondary Lift for Universal Wheelbase Compatibility
The inner child lift features front & rear dual-direction sliding extension design, extended secondary deck covers ultra-short compact cars to extra-long wheelbase MPV/EV models, extending applicable wheelbase by extra 300mm vs conventional scissor lifts; turntable reserved slots stay 55mm away from platform edge to eliminate interference with alignment turntable installation.
3. Pneumatic Lock Sliding Side Plates (Core Alignment Configuration)
Factory-equipped pneumatic locking wheel sliding plates, allowing ±3° lateral rotation for precise toe/camber four-wheel alignment adjustment; pneumatic auto-lock design replaces manual bolt locking, saving workshop operation time greatly.
4. Independent Dual Hydraulic Circuit Safety System
Separate hydraulic power stations for mother lift and child lift, independent oil circuits prevent mutual failure impact; built-in hydraulic explosion-proof valves on all cylinders to avoid sudden platform drop caused by oil pipe rupture; full mechanical auto safety lock system engages automatically during lifting, with manual emergency unlock for power failure rescue. 24V low-voltage control circuit eliminates electric shock hazard for operators.
5. Flexible Installation & User-friendly Design
Ultra-thin body supports two installation solutions: direct floor mount (no pit required) or optional ground recessed pit kit; adjustable anchor bolt holes to compensate uneven ground level; fine-tunable safety latch for height correction within 10mm tolerance. Optional LED ambient lighting along platform sides for convenient undercarriage inspection work.
Application Scenarios
Mainly used for professional four-wheel alignment, chassis inspection, brake repair, suspension replacement and routine vehicle maintenance, ideal for high-end auto service workshops focusing on precision alignment & new energy vehicle servicing.
| Item |
WT52 |
| Main Lifting Capacity |
5500 kg |
| Lift Table Capacity |
4000 kg |
| Lifting Time |
50 s |
| Lowering Time |
50 s |
| Motor Power |
3 kW |
| Platform Length |
5200 mm |
| Main Lift Height |
2030 mm |
| Minimum Height |
185 mm |
| Lift Table Height |
460 mm |
| Total Width |
2330 mm |
| Total Weight |
3055 kg |
| Main Body Package Size |
5300 × 775 × 750 mm |
| Control Box Package Size |
600 × 500 × 1300 mm |
| Accessory Box Package Size |
1240 × 640 × 350 mm |
