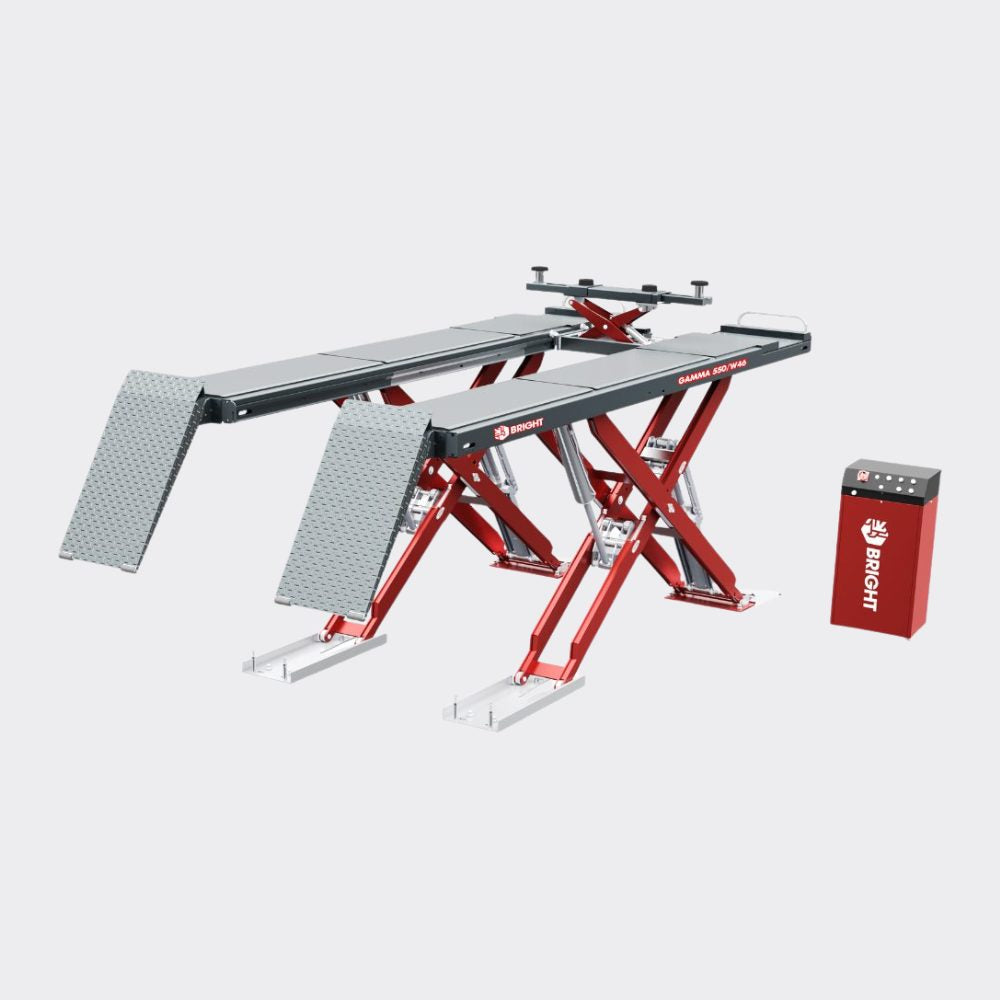

The GAMMA W52 is a durable and space-efficient ultra-thin scissor lift engineered for professional automotive workshops. Combining low-profile accessibility, synchronized hydraulic lifting, pneumatic safety locking, and alignment-ready platforms, the W52 delivers dependable performance for daily vehicle servicing and maintenance operations. Its robust hydraulic power unit and reinforced scissor structure ensure long-term reliability in demanding workshop environments.
BRIGHT J906A--0000000 (JB-26B) Jacking beam-26B only compatible with BRIGHT GAMMA 550/W52 5.5t scissor lift
The GAMMA W52 is a professional-grade ultra-thin hydraulic scissor lift designed for efficient vehicle lifting, wheel alignment preparation, servicing, tyre work, and workshop maintenance applications. Featuring a low-profile platform design, synchronized hydraulic lifting system, and heavy-duty steel structure, the W52 provides reliable lifting performance while maximizing workshop space efficiency.
Built with a robust dual-platform scissor mechanism, the GAMMA W52 incorporates hydraulic master/slave cylinders, pneumatic safety locking systems, and precision sliding platforms for smooth and stable operation. The integrated electro-hydraulic control box includes an electric control panel, pump unit, air electro-magnetic valve, and hydraulic management system for dependable workshop use.
The lift features:
- Ultra-low profile design
- Dual hydraulic cylinder lifting system
- Pneumatic safety release mechanism
- Heavy-duty steel platforms
- Sliding plates and turntable preparation
- Integrated electro-hydraulic power unit
- Mechanical safety locks with safety harpoon system
- Compact external control cabinet
The hydraulic system includes a 29L square oil tank, relief valve rated from 140–350 bar, adjustable throttling system, and gear pump configuration for smooth lifting performance.
Ultra-Thin Low Profile Design
The GAMMA W series features an extremely low collapsed height of approximately 60mm, allowing easy access for low-clearance vehicles.
High Lift Capability
Maximum lifting height reaches approximately 2030mm, providing excellent working access underneath vehicles.
Heavy-Duty Scissor Structure
Constructed using reinforced internal and external scissor arms with self-lubricating bushings, rollers, and sliding pads for durability and stability.
Hydraulic Synchronization System
Equipped with:
- Master hydraulic cylinder
- Slave hydraulic cylinder
- Hydraulic hose connection system
- Electro-hydraulic pump station
This ensures smooth, synchronized lifting performance.
Pneumatic Mechanical Safety Lock
Features a dedicated Safety Harpoon locking system with compact cylinder actuation for secure mechanical locking during operation.
Integrated Power Unit
The control system includes:
- Electric control panel
- Hydraulic pump unit
- Air electro-magnetic valve
- Air valve assembly
- Transformer and contactor system
Designed for reliable workshop operation and easy servicing.
Sliding Rear Plates
Integrated sliding plates and turntable preparation make the lift suitable for wheel alignment and suspension work.

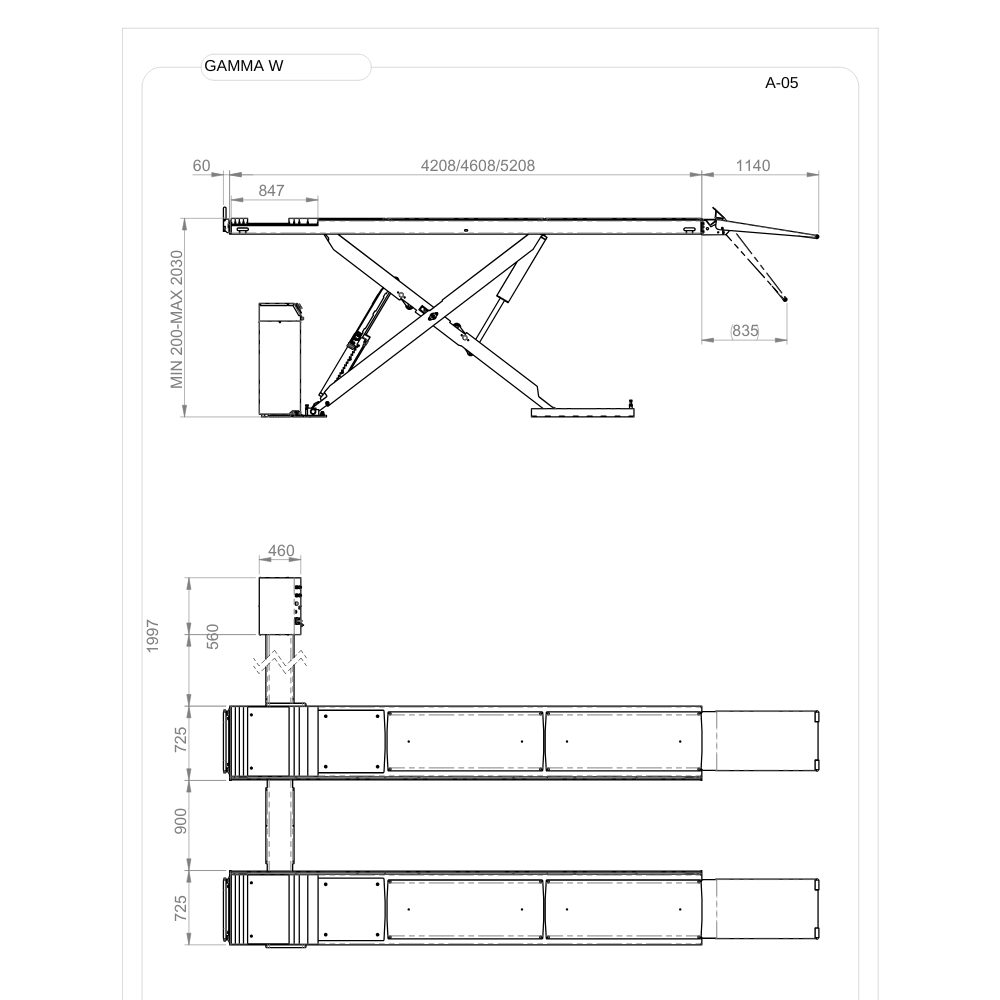

| Feature |
Details |
| Lift Type |
Ultra-Thin Hydraulic Scissor Lift |
| Model |
GAMMA W52 |
| Maximum Lift Height |
Approx. 2030mm |
| Minimum Height |
Approx. 60mm |
| Platform Length Options |
4208 / 4608 / 5208mm |
| Hydraulic System |
Dual Cylinder Hydraulic |
| Oil Tank Capacity |
29L |
| Safety System |
Pneumatic Mechanical Lock |
| Control System |
Electro-Hydraulic |
| Application |
Tyre Service, Wheel Alignment, General Repair |
