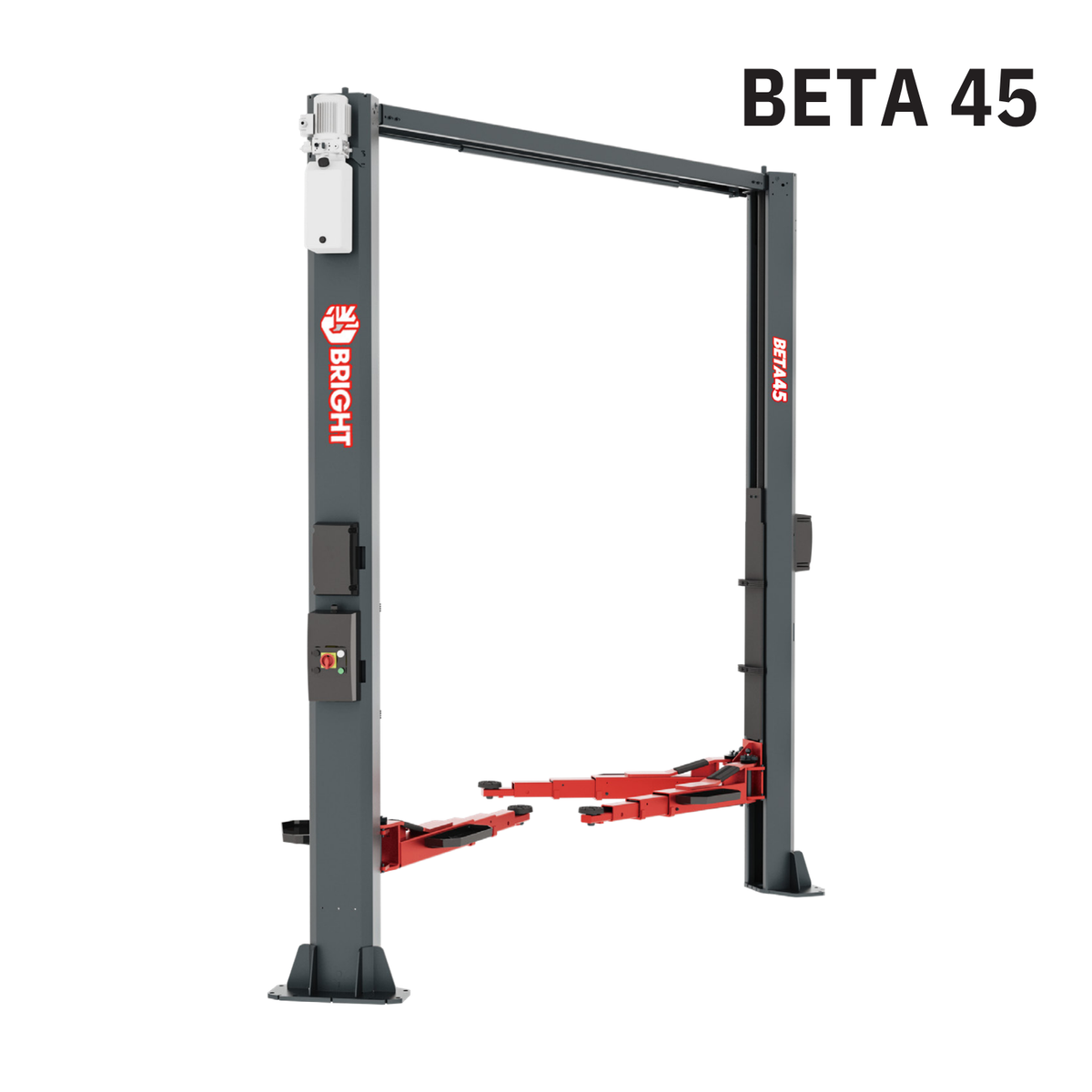

BRIGHT BETA 45 Lift
BRIGHT BETA 45 Lift
BRIGHT BETA 45 Lift
Lift

BRIGHT BETA 45 Lift

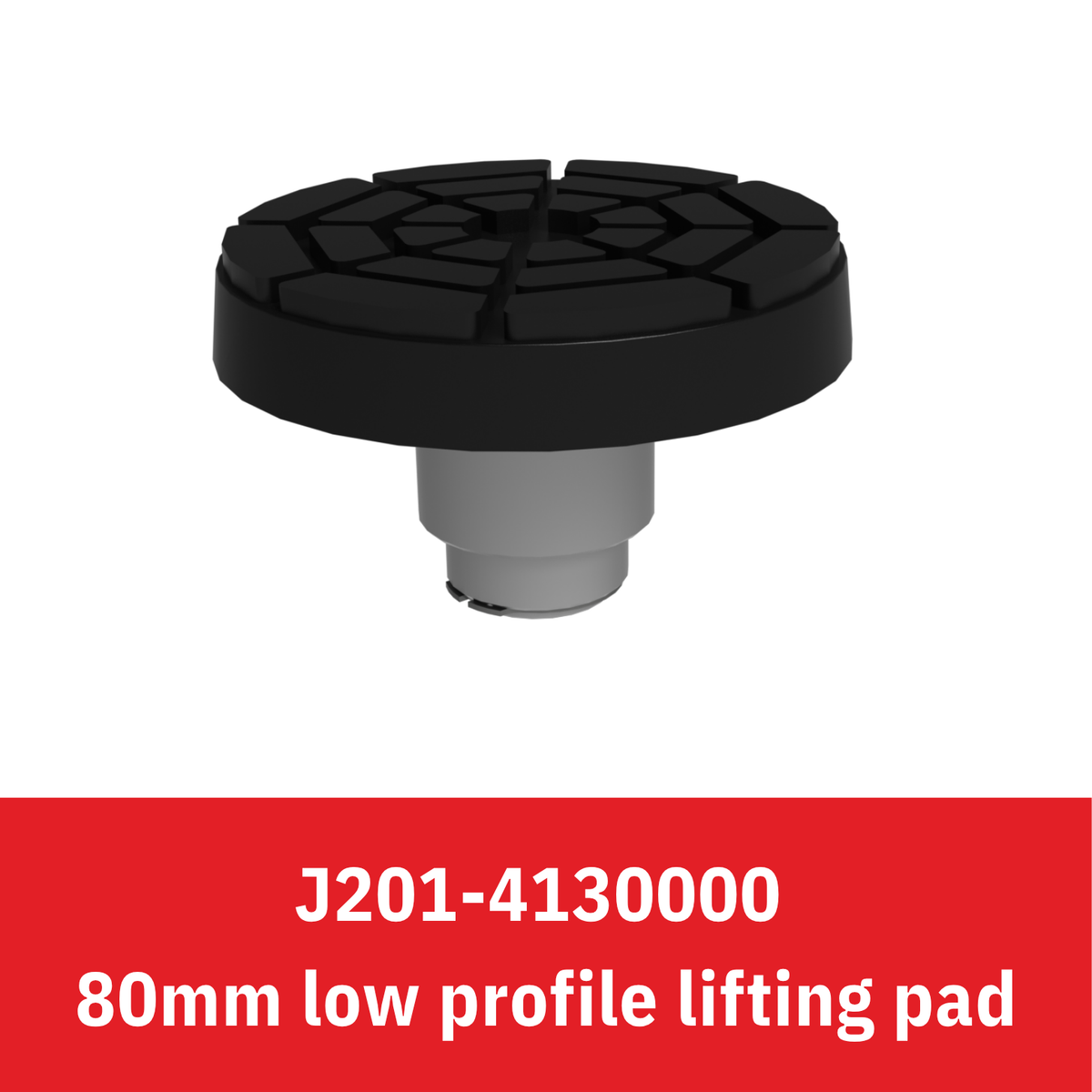

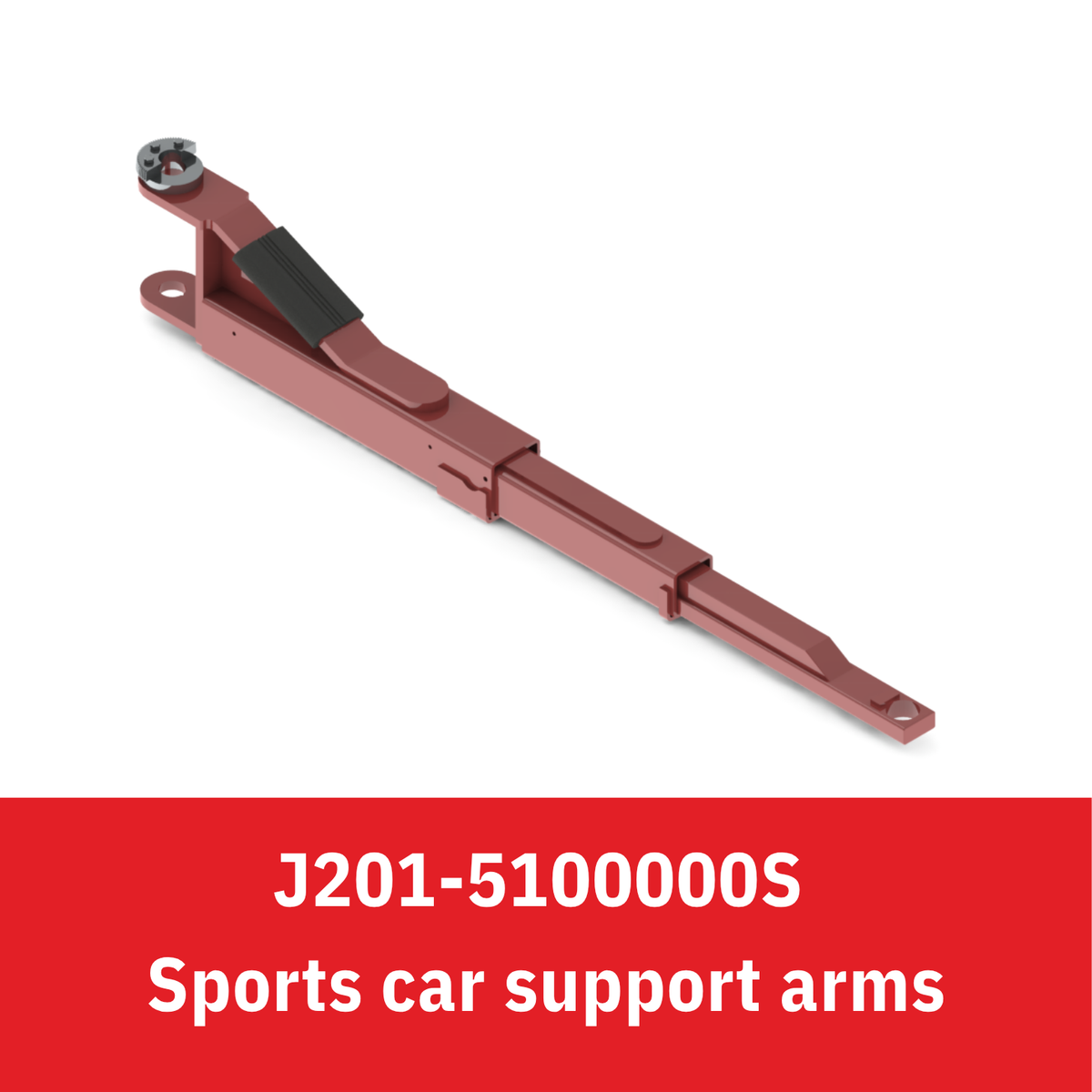

400v/ 3PH or 240V/50HZ/1PH Standard 3+3 arms With standard sports arm J201-5100000S Sports car support arms J201-4130000 80mm height low profile lifting pad

$5,800.00
SKU: BETA-45
Fast Shipping Secure Checkout Professional Grade
i

Product Information

Product feature

✓ Provides both symmetric and asymmetric mounting modes for greater flexibility
✓ Nylon slide pads, long life-used, Maintenance free for its lifetime
✓ Environment-friendly and low noise design, Equipped with 600mm column extension frame and 1200mm column extension frame.
✓ Two different column extensions for different space options. The column adopts an 8-fold bending structure and built-in reinforcement to maximize the column strength.
✓ Base plate thickness is 20mm, Support arm thickness is 6/8mm.
✓ Parachute valve inside the cylinder ensures user safety. Vulcanized rubber pad has long life.
✓ Each lift passes the test of 115% dynamic load and 150% static load,safe and reliable.
✓ Bright's lift is equipped with product liability insurance

Technical data

45
Lifting capacity 4500kg
Lifting time 50s
Lowering time 50s
Motor power 3Kw
Lifting height 2050mm
Minimum height 115mm
Total width 3987/4039mm
Total weight 984Kg
Package size(mainbody) 3989*1091*520mm
PDF Download Product Information MSDS / Safety Data Sheet ↓
