Lift

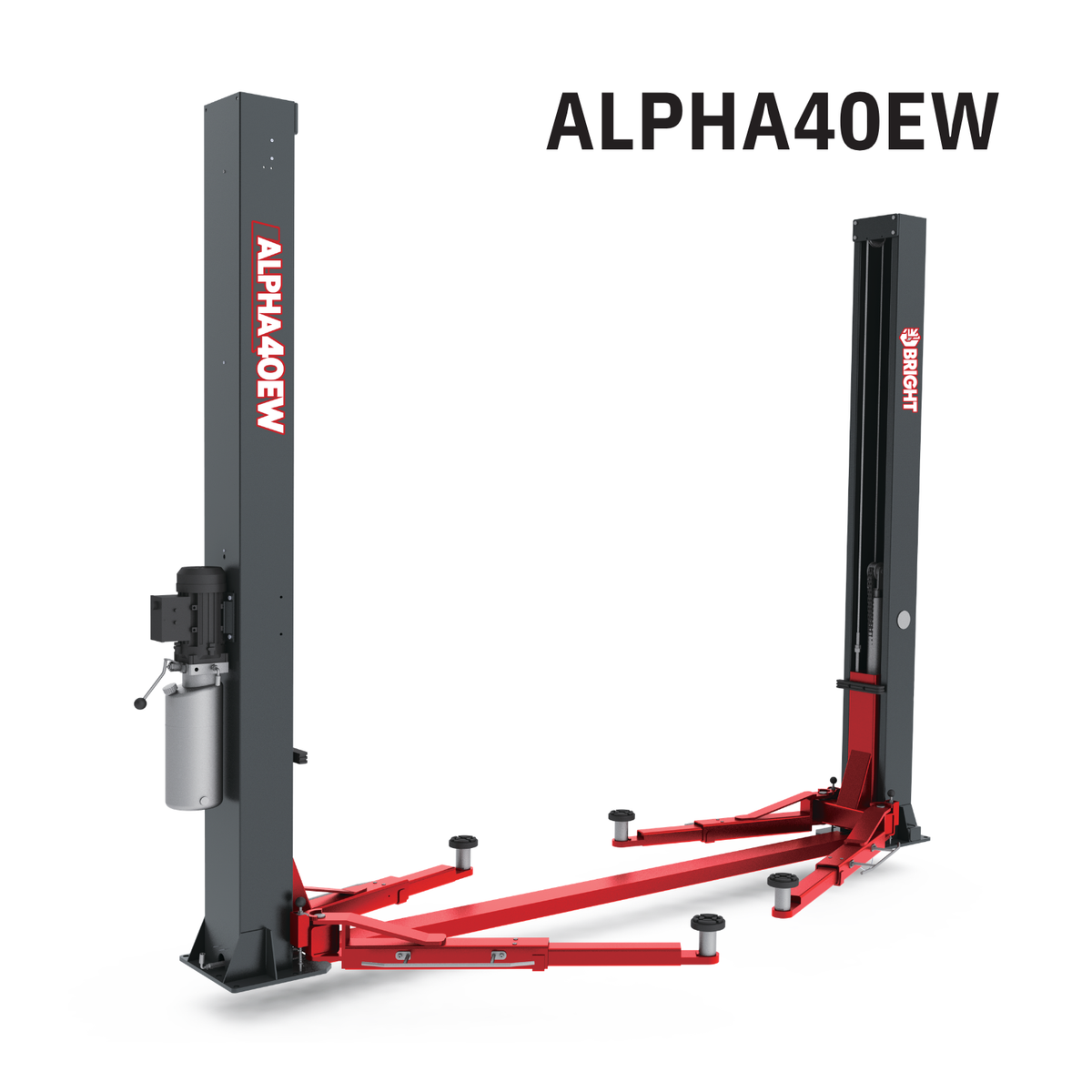

Bright ALPHA 40EW Lift

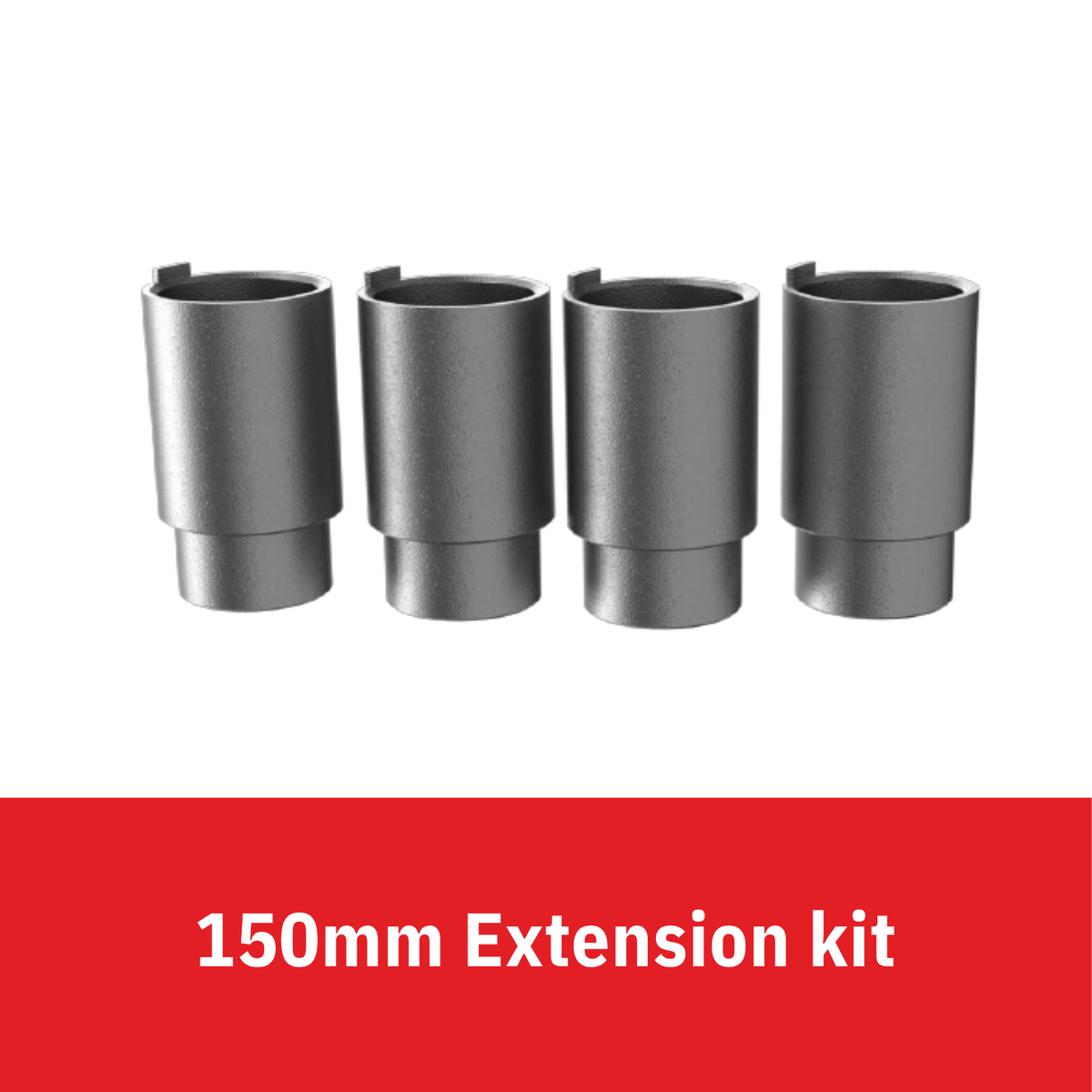

240V/50HZ/1PH Both side manual relase Standard 2+2 arms 150mm extension kit

$3,200.00
SKU: ALPHA-40EW
Fast Shipping Secure Checkout Professional Grade
i

Product Information

Product feature

✓ By two cylinder, plate and wire rope chain balance system, lifting and lowering smooth
✓ 16mm Base plate stabilizes foundation
✓ Equipped with the height limit Microswitch as standard
✓ Rubber pad door-opening protection
✓ Feet-protection safety guardrails
✓ It has adopted 115% dynamic loading capacity and 150% staic loading capacity tested

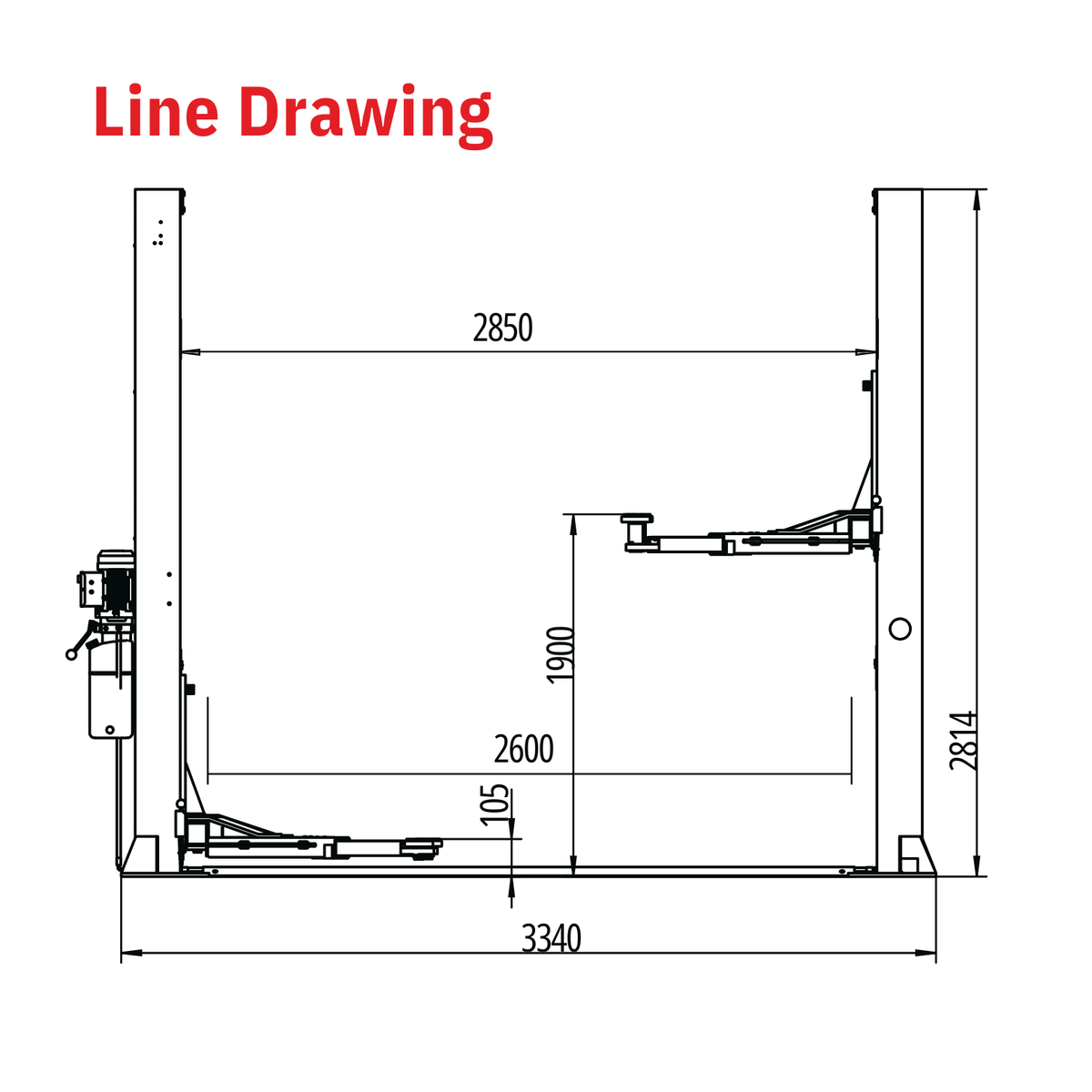

Technical data

Lifting capacity 4000kg
Lift time 40s
Lift Height 1900mm
Min. Height 105mm
Overall Height 2814mm
Post Distance 2850mm
Overall Width 3340mm
Motor Power 2.2KW
Power Input 220V/380V
Gross Weight 545KG
Packing Dimensions 2850*450*700mm
Accessory Box Dimensions 800*280*310mm
Locking method Two side manual release
PDF Download Product Information MSDS / Safety Data Sheet ↓
