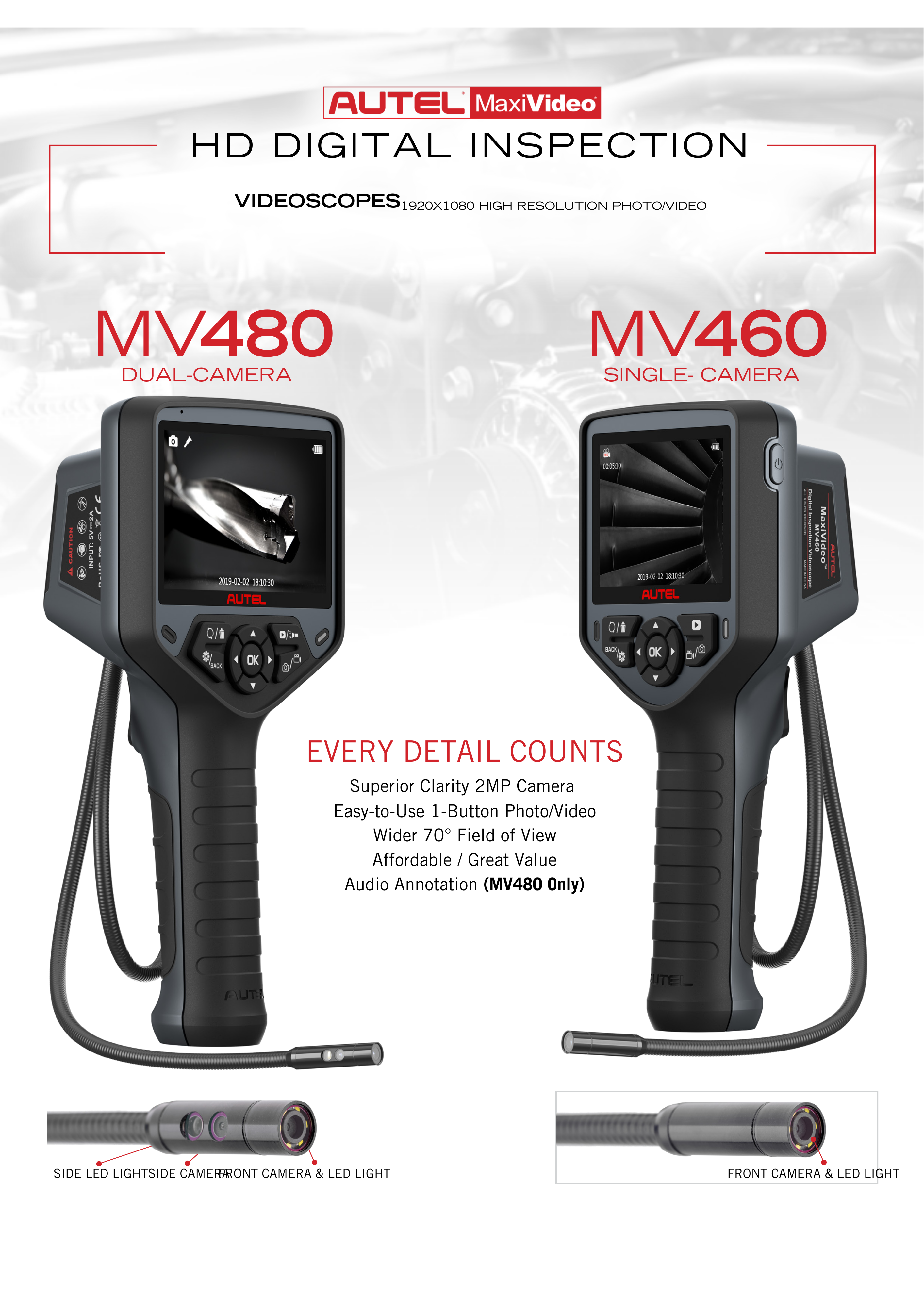

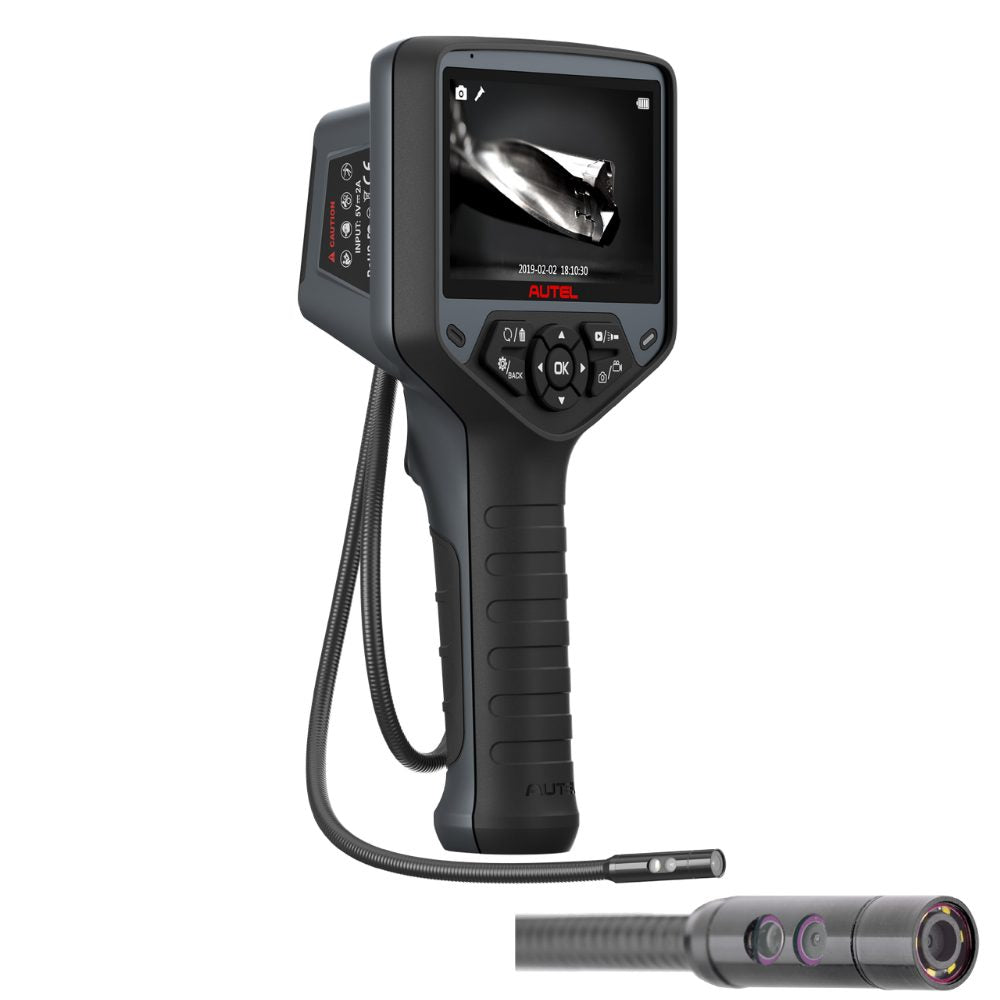

The Autel MaxiVideo MV480 is an HD digital inspection videoscope designed to help technicians inspect hard-to-reach areas with high clarity. It features a 2MP camera capable of capturing 1920 × 1080 high-resolution photos and videos, providing detailed images during inspections. The MV480 uses dual front and side cameras for a wider viewing angle, allowing users to see both straight ahead and to the side for more complete inspections.
The device includes a 4.1-inch full color LCD display, a 70° field of view, and a 1-button photo and video capture function for quick operation with one hand. It also supports audio annotation using a built-in microphone and speaker, making it easier to record notes during inspections. With a semi-rigid flexible cable and adjustable LED lighting, the MV480 is ideal for inspecting engines, machinery, pipes, and other confined spaces.
| Recommended Use |
Indoor |
| Optimal Viewing Distance |
0.79" to 2" (2 cm to 5 cm) |
| Image Capture |
- JPG images (1920 x 1080 pixels)
- MP4 videos (1920 x 1080 pixels)
|
| Screen Type Display |
4.1" TFT LCD |
| Display Resolution |
1200 x 720 pixels |
| Power Supply |
Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh) |
| Tested Battery Life |
Approximately 4 hours of continuous use |
| Dimensions |
243 x 116 x 122mm (9.6" x 4.6" x 4.8") |
| Weight |
0.422 kg (0.93lbs) |
| Recording Medium |
Micro SD card (8GB Standard/128GB Max) |
| Image Controls |
Zoom, low light vision |
| Lighting |
Fully adjustable LED, Flashlight |
| Cable Reach |
1m (39.4") |
| Imager Heads |
8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels) |
| Waterproof |
To a depth of 1m (39.4") (Imager heads and cable only) |
| Additional Ports |
|
| Operating Temperature |
- Main unit: 14°F to 122°F (-10°C to 50°C)
- Cable: 14°F to 140°F (-10°C to 60°C)
|
| Storage Temperature |
-4°F to 158°F (-20°C to 70°C) |
| Operating Humidity |
5% – 95% non-condensing |
