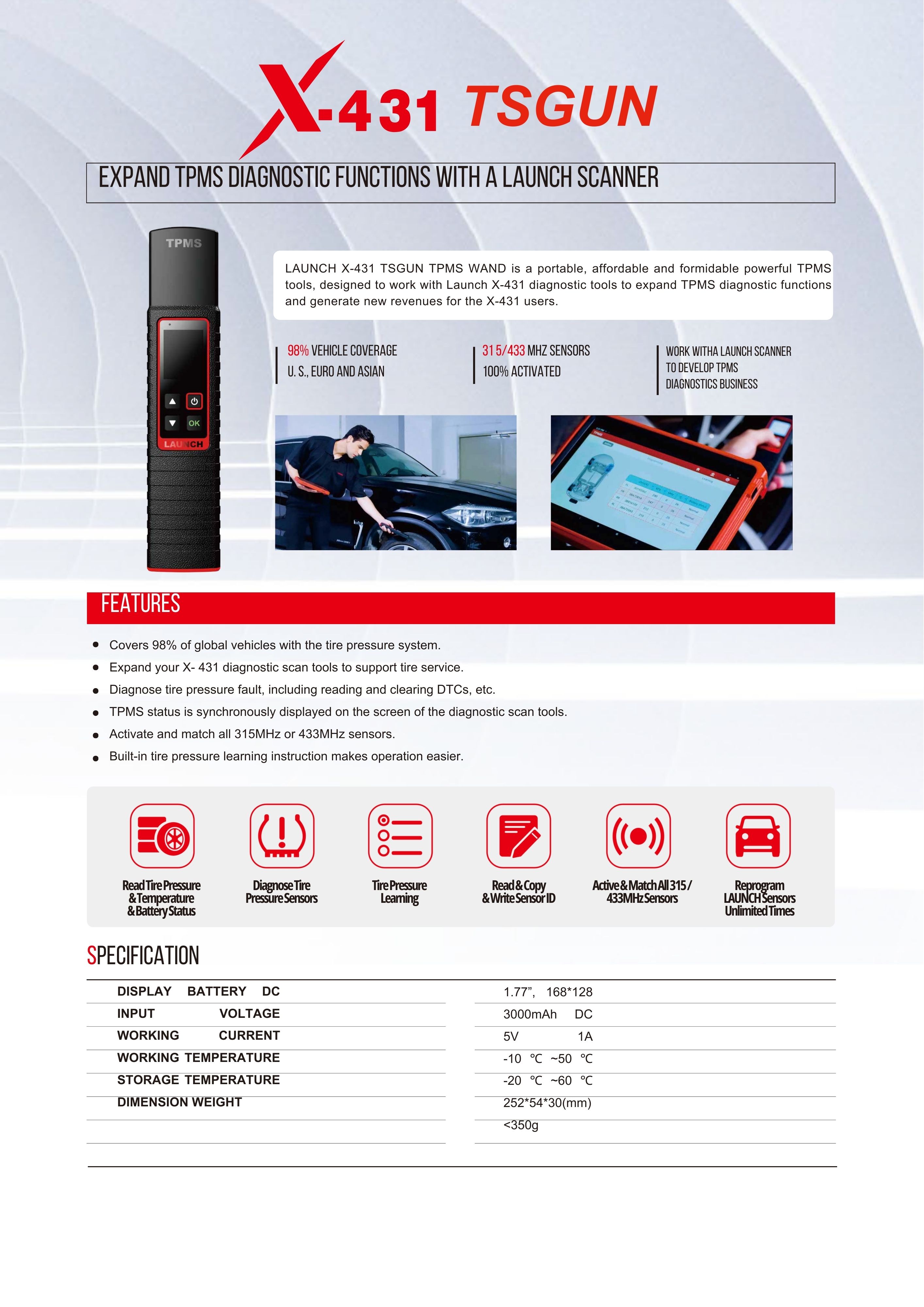

LAUNCH X431 TS GUN Bluetooth TPMS add on module

The Launch X-431 TSGUN TPMS Wand is a portable TPMS tool designed to work with Launch X-431 diagnostic scanners to expand tire pressure monitoring system diagnostics and tire service capabilities. It allows technicians to diagnose TPMS faults, read and clear diagnostic trouble codes, and monitor TPMS status directly on the connected diagnostic scanner.

The tool can activate and match all 315 MHz and 433 MHz TPMS sensors, read tire pressure, temperature, and battery status, and perform sensor learning procedures. It also supports reading, copying, and writing sensor IDs, as well as reprogramming Launch sensors unlimited times, making it a powerful solution for tire service and TPMS maintenance.

The TSGUN supports 98% of global vehicles including U.S., European, and Asian models, helping workshops expand their TPMS diagnostics and tire service capabilities.

• Display: 1.77 inch (168 × 128)

• Battery Capacity: 3000 mAh

• DC Input Voltage: DC 5V

• Working Current: 1 A

• Working Temperature: −10°C to 50°C

• Storage Temperature: −20°C to 60°C

• Dimensions: 252 × 54 × 30 mm

• Weight: < 350 g

Key Functions

• Read tire pressure, temperature, and battery status

• Diagnose tire pressure sensors

• Tire pressure sensor learning

• Read, copy, and write sensor ID

• Activate and match all 315 MHz / 433 MHz sensors

• Reprogram Launch sensors unlimited time
