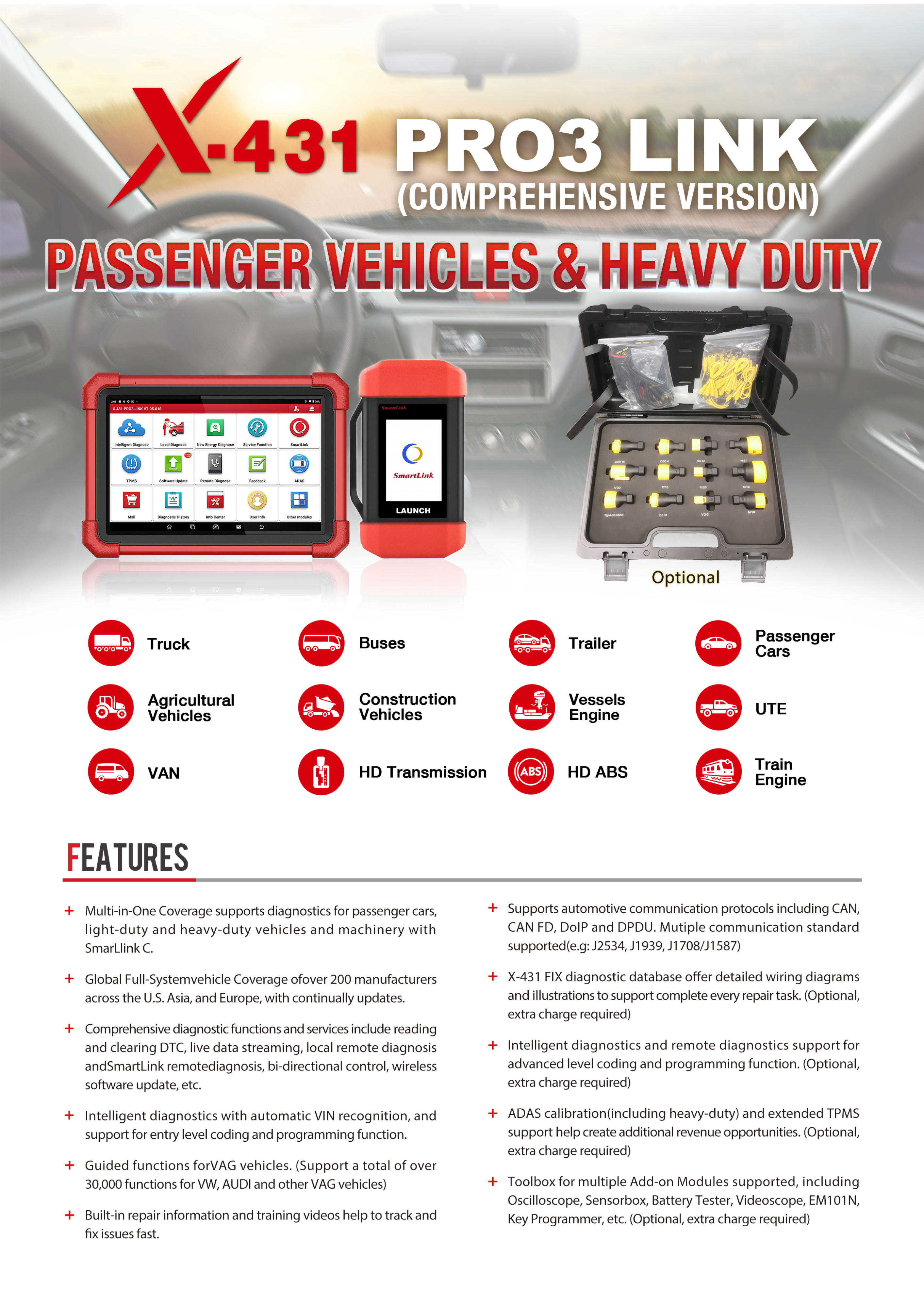

The Launch X-431 PRO3 LINK (Comprehensive Version) is a professional diagnostic system designed for passenger vehicles and heavy-duty equipment. It provides full-system diagnostics, advanced coding and programming functions, and wide vehicle coverage across passenger cars, trucks, buses, construction machinery, agricultural vehicles, and other heavy-duty applications. The system uses the SmartLink C VCI interface to support local and remote diagnostics with bi-directional control, data streaming, ECU coding, and software updates.
The tool supports modern communication protocols including CAN, CAN FD, DoIP, and J2534, and offers intelligent diagnostics with automatic VIN recognition, guided functions, and access to repair information. It also supports advanced features such as ADAS calibration, TPMS services, and additional diagnostic modules, helping technicians perform more complex repairs and diagnostics.

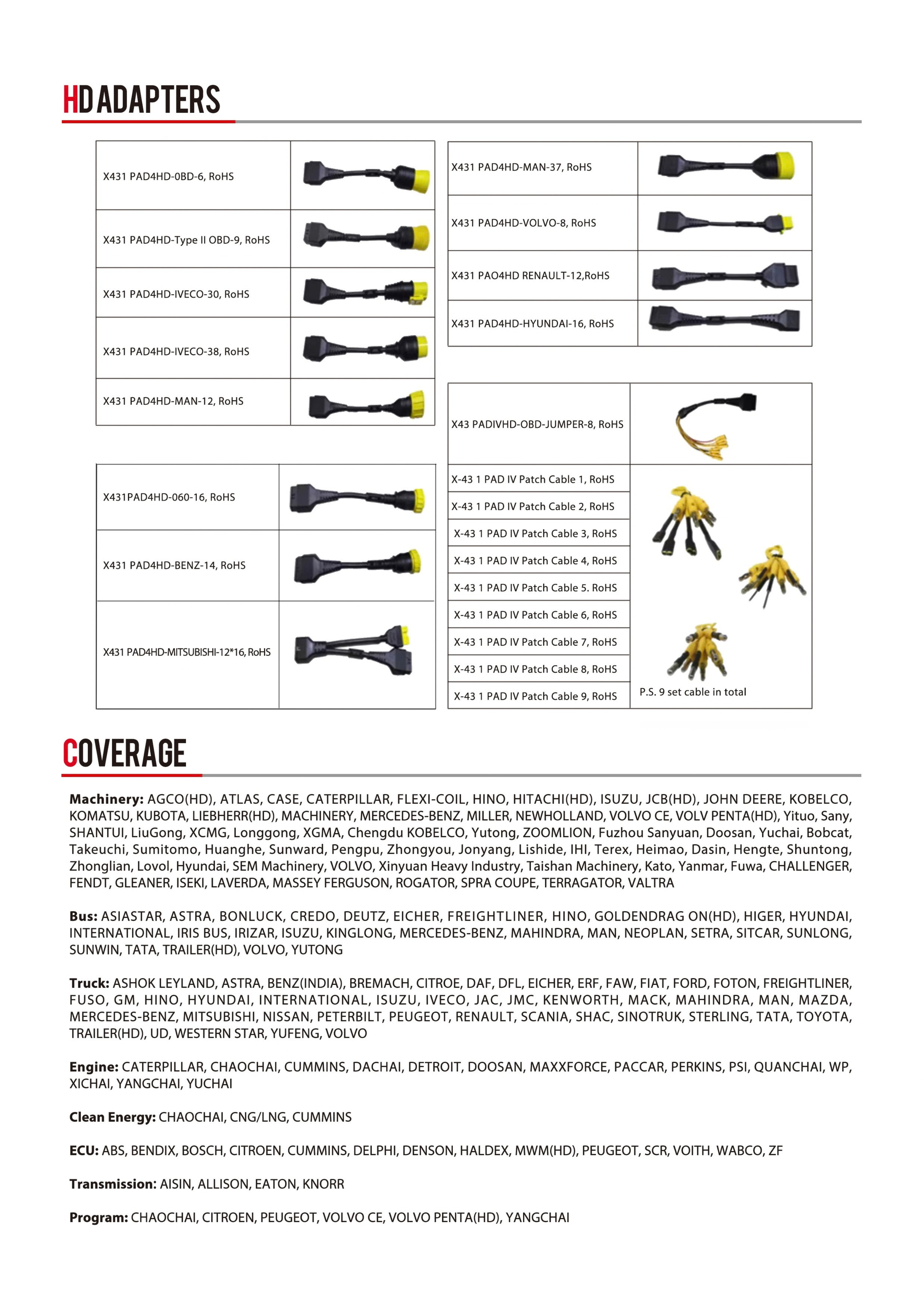

Note: Heavy-duty adapters and specialty cables shown in the brochure are optional accessories and are not included in this set. They can be purchased separately if heavy-duty vehicle diagnostics are required. (sku: LAUNCH-HDADAPTER)
Tablet Hardware
-
Operating System: Android 10.0
-
Processor: 2.0 GHz Quad-Core
-
Memory: 4 GB RAM
-
Storage: 64 GB ROM
-
Display: 10.1-inch touchscreen (1280 × 800)
-
Battery: 6300 mAh
-
Camera: Rear 8 MP
-
Wi-Fi: 2.4 GHz / 5 GHz
-
VCI Connection: Bluetooth
Diagnostic Capabilities
-
Full-system diagnostics for passenger and heavy-duty vehicles
-
ECU coding and programming
-
Bi-directional control
-
Live data streaming and diagnostic reporting
-
Remote diagnostics with SmartLink
Supported Communication Protocols
-
CAN
-
CAN FD
-
DoIP
-
J2534
-
D-PDU
-
J1939 / J1708 / J1587
Service Functions (Examples)

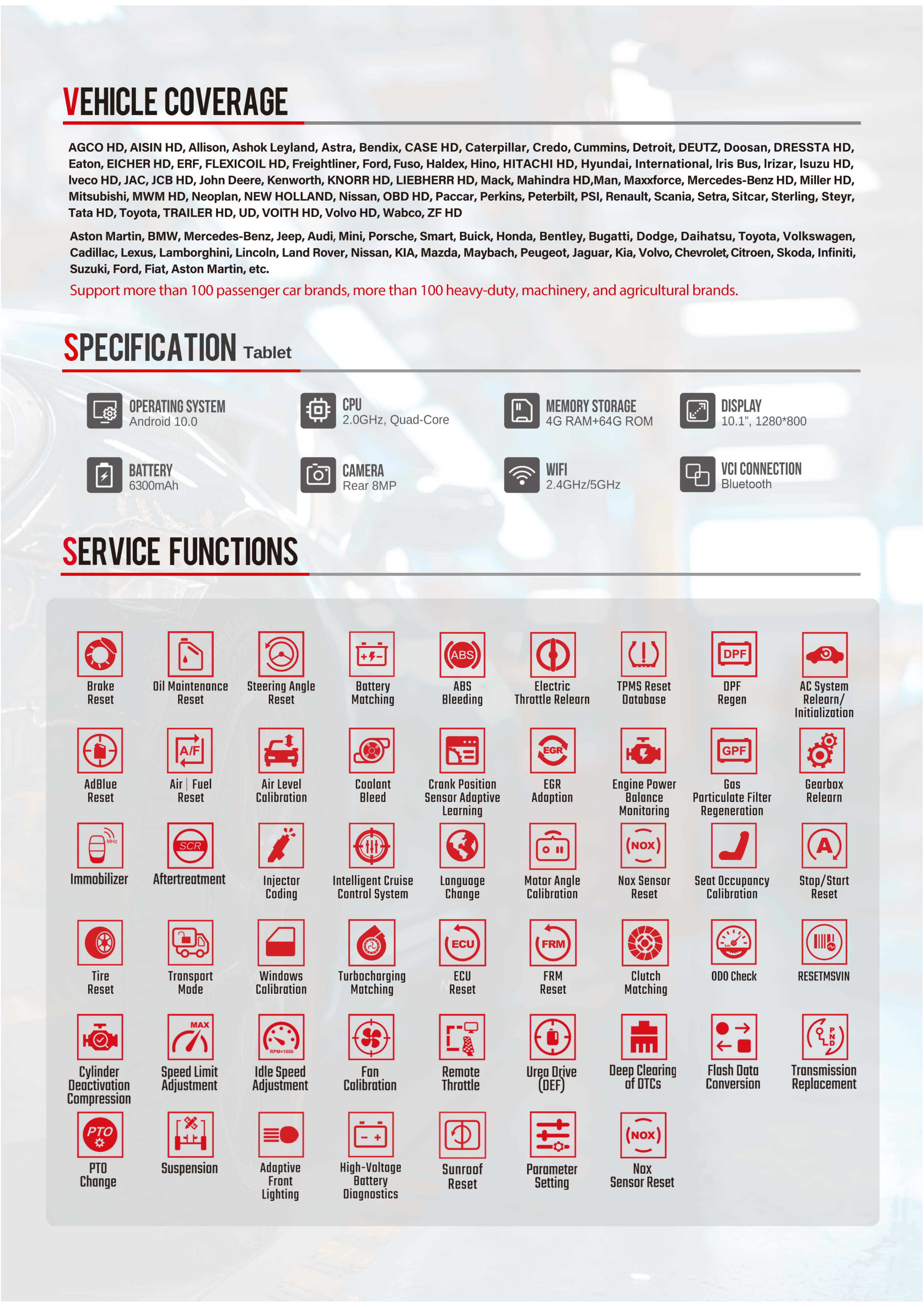

Vehicle Coverage
Important Note
