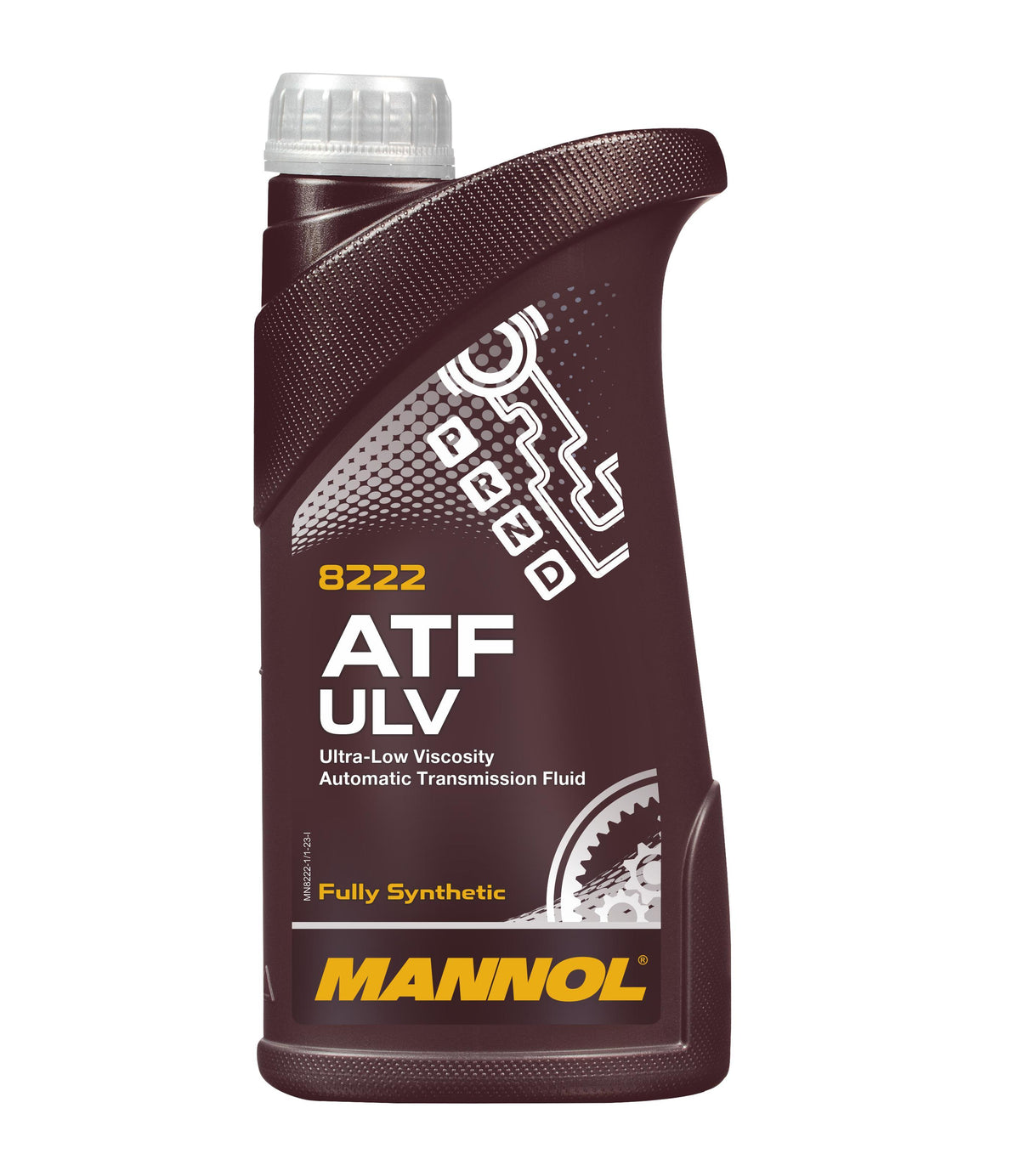

MANNOL 8222 1L ATF ULV
Ultra-Low Viscosity Synthetic ATF

MANNOL 8222 ATF ULV 1L

Ultra-low viscosity synthetic automatic transmission fluid developed for latest-generation AISIN 8-speed gearboxes and other compatible modern automatic transmissions.

$38.29
SKU: MN8222-1
✓Ultra-Low Viscosity ATF
✓AISIN 8-Speed Applications
✓FORD XT-12-ULV
✓Red Fluid
Fast Shipping Secure Checkout Professional Grade
⚙️

ULTRA-LOW VISCOSITY FORMULA

Special synthetic base is designed for modern transmissions requiring very low viscosity fluid while maintaining strong lubrication performance.

🔄

SMOOTH JERK-FREE SHIFTING

Advanced friction technology supports soft, smooth gear changes and reliable clutch operation.

🛡️

HIGH-LOAD PROTECTION

Special additive technology helps protect friction surfaces and bearings against wear and seizure under demanding loads.

🌡️

THERMAL STABILITY

High thermal and chemical stability helps minimise deposits and maintain transmission performance over extended service.

i

Product Information

Special ultra-low viscosity synthetic gear oil with a special additive package for the latest AISIN 8-speed gearboxes including those equipped with a slip lock-up clutch.

Recommendation

AISIN WARNER AW-2 AISIN WARNER JWS 3324 ATF, ATF-0WS ATF 134 ATF 3353 ATF D971 ATF L12108 ATF M-1375.4 ATF M-1375.6 AUDI G 052 533 AUDI G 053 001 A2 AUDI G 055 005 A2 AUDI G 055 162 A2, A6 AUDI G 055 540 A2 AUDI G 060 162 A2 AUDI G 060 540 A2 BENTLEY PY112995PA BMW ATF 3+ BMW ATF 7 BMW ATF 6 BMW M-L12108 BMW 83 22 0 142 516 BMW 83 22 0 397 114 BMW 83 22 2 152 426 BMW 83 22 2 163 514 BMW 83 22 2 289 720 BMW 83 22 2 305 396 BMW 83 22 2 305 397 BMW 83 22 2 355 599 BMW 83 22 2 355 601 BMW 83 22 2 413 477 BOSCH TE-ML 09 FCA 8 & 9 Speed ATF, 68218925AA FCA 8 & 9 Speed ATF, 68218925AB FCA AW-1, 68092912AA FCA Dex-VI, 68043742AA FCA Fiat 9.55550-AV2 FCA Fiat 9.55550-AV5 FCA Fiat 9.55550-AV6 FCA 5127382 FCA 68157995AA FCA 68157995AB FCA SP-4, 68171866AA FCA SP-IV, 68171866AA FCA SP-IV, 68171869AA FORD XT-10-QLV [LV] FORD XT-12-ULV [ULV] FORD XT-6-QSP [SP] GM 1940773 GM WS, 88863400 GM WS, 88863401 GM AW-1, 19256039 GM Dex HP [GMW 16974] GM DEX ULV, 19352619 GM Dex-VI [GMW 16444] HONDA ATF DW-1 08200-9008 HONDA ATF Type 3.0 08200-9016-A

Product properties:

• Despite the use of a special ultra-low viscosity synthetic base, its properties allow the oil to have a consistently high viscosity index, and in combination with the latest multifunctional additive package allow the oil to retain all its properties over a wide temperature range. Due to this, the oil provides good lubricating properties at low (-45 °C) temperatures in winter and provides a stable oil film at extreme loads and temperatures in summer, provides the necessary antifriction properties even when the continuity of the oil film is broken under excessive loads. The combination of special properties of the base oil and additive package protects friction surfaces and bearings from wear and seizure, reduces friction energy losses by reducing shear resistance between interacting surfaces under conditions of elastohydrodynamic lubrication (EHL);
• A high-tech combination of additives provides good antifriction properties for gear couplings and excellent friction properties for friction elements, resulting in significant fuel savings, exceptionally soft and smooth jerk-free gear shifting and a significant increase in the service life of all transmission elements;
• Provides harmonious and smooth operation of clutches, extends the service life of friction elements, prevents the touching elements of the hydraulic clutch from slipping when shifting modes, which significantly reduces their wear;
• Has unrivalled thermal oxidative and chemical stability and resistance to high-temperature thermal degradation throughout its service life. This minimises the formation of sludge, varnish, soot and other carbon deposits, significantly extends oil change intervals and ensures the longevity of transmission components, which reduces maintenance costs;
• Protects ferrous and non-ferrous alloy metal parts against corrosion both in operation and in non-operational condition;
• Effectively resists aeration and foaming;
• Provides compatibility with all seal materials, prevents swelling, hardening and shrinkage, thus reducing spare parts costs and preventing leaks;
• Has excellent cooling properties;
• Reduces torque loss in the gearbox by at least 10 % compared to low-viscosity ATFs;
• Reduces noise.
Recommended for automatic transmissions of the latest generations installed in BMW, Peugeot, Citroën, Volvo, Opel, Volkswagen vehicles, as well as in vehicles of Japanese, Korean and American car manufacturers.
Colour red.
Observe the manufacturer’s instructions in the operating manual!
Documents

Technical Downloads

2 files
PDF 8222_SDS.pdf Safety Data Sheet (SDS) PDF 8222_TDS.pdf Technical Data Sheet (TDS)
Perfect For
⚙️
AISIN 8-SPEED TRANSMISSIONS Developed for compatible latest-generation AISIN 8-speed automatic gearboxes, including applications with slip lock-up clutches.
🚗
MODERN AUTOMATIC TRANSMISSIONS Suitable for compatible latest-generation automatic transmissions requiring ultra-low viscosity ATF.
🇪🇺
EUROPEAN VEHICLES Suitable for compatible BMW, Peugeot, Citroën, Volvo, Opel and Volkswagen transmission applications.
🌍
MULTI-VEHICLE APPLICATIONS Suitable for compatible Japanese, Korean and American automatic transmission applications requiring the listed specifications.
⚙️
ULTRA-LOW VISCOSITY ATFDeveloped for compatible modern automatic transmissions requiring very low viscosity transmission fluid.
🔄
AISIN 8-SPEEDDesigned for compatible latest-generation AISIN 8-speed gearbox applications.
🌡️
WIDE TEMPERATURE PERFORMANCEProvides reliable lubrication from -45°C cold conditions to demanding high-temperature operation.
🛡️
FRICTION & WEAR PROTECTIONAdvanced additive technology supports smooth shifting while protecting transmission components from wear.

Ultra-Low Viscosity Performance for Modern Automatic Transmissions

MANNOL 8222 ATF ULV combines an ultra-low viscosity synthetic base with advanced friction-control and protection technology to support smooth shifting, reduced transmission losses, thermal stability and reliable protection in compatible modern automatic gearboxes.
