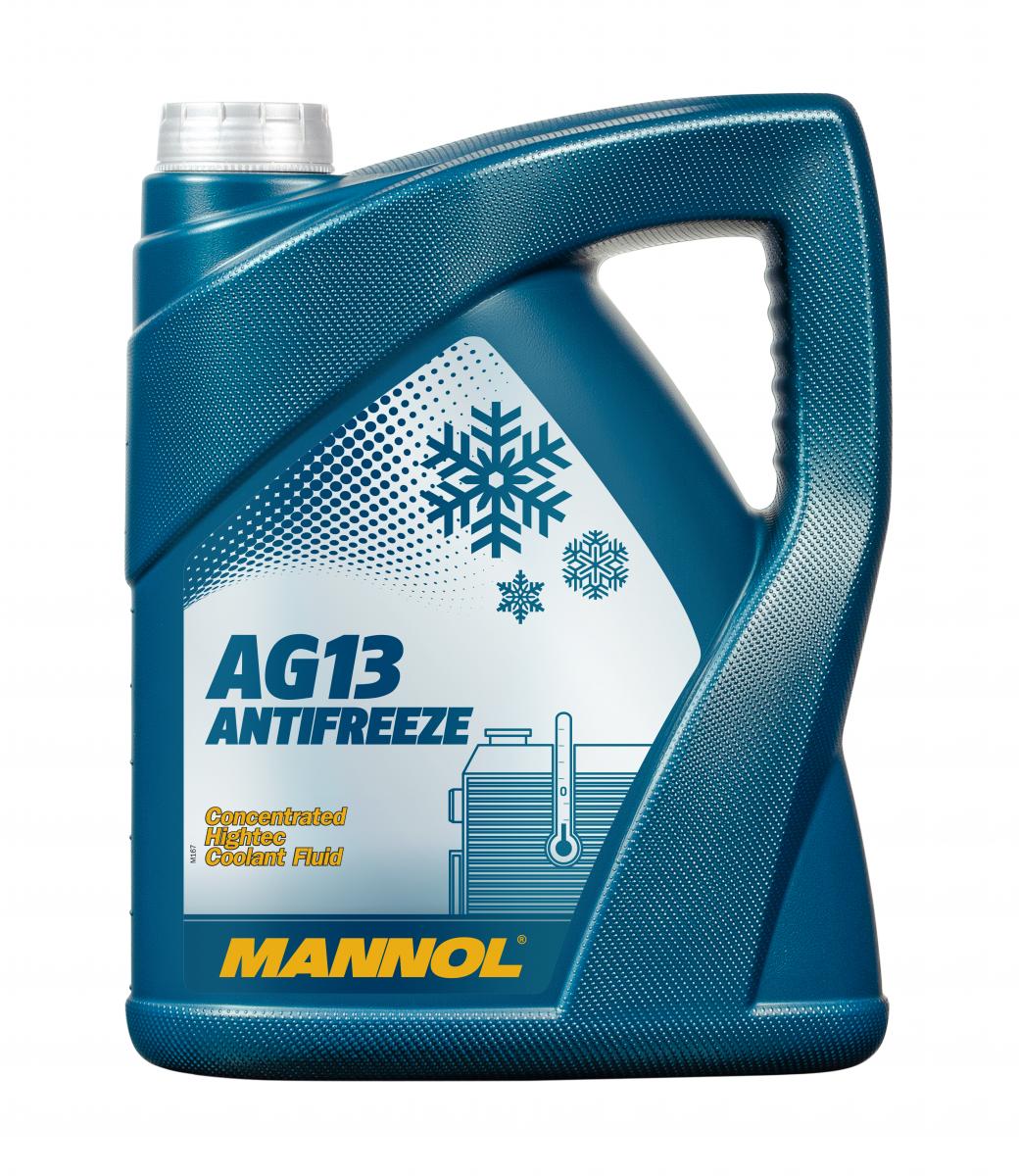

MANNOL 4113 5L Antifreeze AG 13 Hightec
HOAT Antifreeze Concentrate

MANNOL 4113 AG13 Antifreeze Concentrate 5L

Green HOAT concentrated antifreeze combining organic and inorganic additive technology for reliable year-round protection of modern cooling systems.

$77.35
SKU: MN4113-5
✓HOAT Hybrid Organic Acid Technology
✓Green Antifreeze Concentrate
✓Corrosion & Deposit Protection
✓Minimum 3-Year Service Life
Fast Shipping Secure Checkout Professional Grade
🛡️

HYBRID CORROSION PROTECTION

HOAT technology combines organic and inorganic additives to provide immediate and long-lasting protection against corrosion.

🌡️

HIGH THERMAL STABILITY

Provides excellent heat conductivity, deposit protection and resistance to foam formation.

🔦

UV LEAK DETECTION

Contains fluorescent dye to help identify even small antifreeze leaks under UV light.

⚙️

COOLING SYSTEM COMPATIBILITY

Compatible with common metals, rubber, hoses and plastic components used in modern cooling systems.

i

Product Information

A hybrid (HOAT – Hybrid Organic Acid Technology) high-technology concentrated antifreeze with excellent operating characteristics intended for a year-round use in any modern cooling system for which the use of mono-ethylene-glycol-based antifreeze is recommended.
It ensures a reliable protection of any cooling system.

Recommendation

SAE J1034 AFNOR FRANCE NF R15-601 ASTM USA D3306 ASTM USA D4340 ASTM USA D4985 BSI GB BS 6580:2010 NATO S-759 BMW GS 94000 CHRYSLER MS-7170 FORD ESE-M97B4H-A FORD AF Plus GM 1825 M GM 1899 M GM SATURN JAGUAR JOHN DEERE MAN 324 Typ NF MB 325.0 MINI GS 94000 MTU MTL 5048 OPEL GME L1301 OPEL GM QL130100 VAUXHALL GME L1301 JENBACHER TA 1000-0201 JENBACHER TA 1000-0204

Product properties:

• It ensures a reliable protection of metals and alloys (brass, copper, alloy-treated steel, cast iron, aluminium) from all forms of corrosion, as well as prevents a high-temperature corrosion of aluminium surfaces of modern engines. It provides sufficient anti-corrosion properties from the concentration as low as 30%;
• The non-organic additive package protects the surface at once and the organic part starts to act only when corrosion sources appear thus a maximum protection is reached from the start of use and the service life of the engine is extended;
• It has an exceptional thermal stability. It protects from deposit formation;
• It has excellent heat conductivity properties and a resistance to foam formation;
• It is neutral to inserts and hoses, compatible with all types of rubber and plastic components of a cooling system;
• It has an excellent resistance to hard water and very low corrosion inhibitor depletion rates;
• The high-efficiency additive package ensures an exceptional stability of operating properties of the antifreeze throughout the entire service life;
• It contains a fluorescent dye allowing identifying even small leakages of the antifreeze in the UV light;
• It is a liquid with an elevated level of borates and silicates. It does not contain nitrates, phosphates and amines (the NAP free technology).
Colour: green.
Service life: no less than 3 years.
Comply with the manufacturer’s instructions provided in the user’s manual!
Pour point, °C Mix ratio, %
Coolant fluid ratio Water ratio
-20 35 65
-25 40 60
-29 45 55
-38 50 50
Documents

Technical Downloads

2 files
PDF 4113_SDS.pdf Safety Data Sheet (SDS) PDF 4113_TDS.pdf Technical Data Sheet (TDS)
Perfect For
🚗
MODERN COOLING SYSTEMS Suitable for compatible modern cooling systems requiring mono-ethylene-glycol-based antifreeze.
🌡️
YEAR-ROUND PROTECTION Designed for year-round cooling-system use in compatible vehicles and equipment.
🛡️
MULTI-MATERIAL SYSTEMS Suitable for systems containing aluminium, brass, copper, steel, cast iron, rubber and plastic components.
❄️
CONCENTRATE MIXING Can be mixed with water at different ratios according to the required pour-point protection.
🛡️
HOAT PROTECTIONCombines organic and inorganic additive technology for comprehensive cooling-system protection.
❄️
DOWN TO -38°C50:50 coolant-to-water ratio provides a pour point of -38°C.
🔦
UV LEAK DETECTIONFluorescent dye helps locate small coolant leaks.
🟢
GREEN CONCENTRATEGreen concentrated antifreeze for compatible modern cooling systems.

Reliable HOAT Protection for Modern Cooling Systems

MANNOL 4113 AG13 is a green HOAT antifreeze concentrate designed to provide reliable corrosion protection, thermal stability, deposit control and year-round cooling-system performance in compatible modern vehicles and equipment.
