Lift

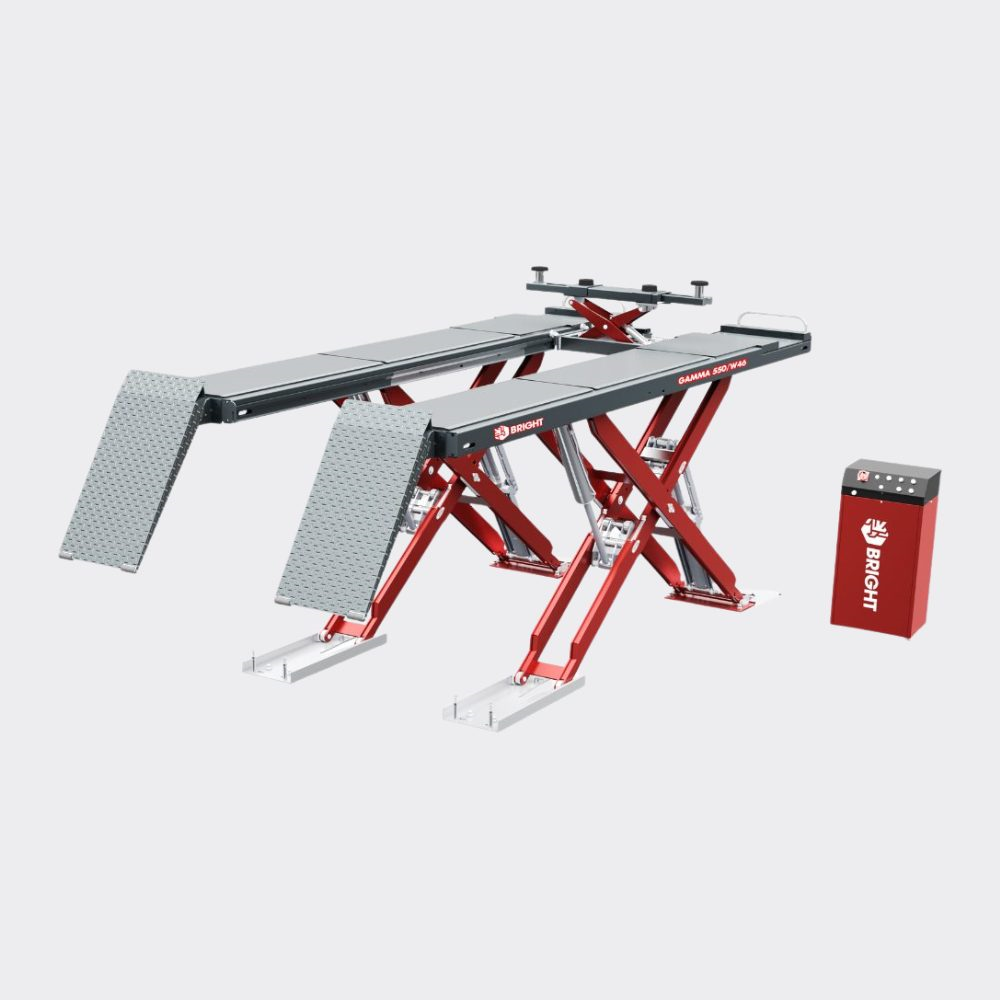

BRIGHT GAMMA 550/W52 Lift
400V,3PH,50HZ/3KW RAL9011D Standard with crossing beam, Turn table optional, Various design patents, heavy-duty wheel alignment scissor lift.
Fast Shipping
Secure Checkout
Professional Grade
Product Information
Product feature
✓ Various design patents, heavy-duty wheel alignment scissor lift.
✓ Separate hydraulic system on double lifting function.
✓ The platform has anti-deformation structure and provides multiple ways of adjustments.
✓ Friendly design, various modifications to two platforms to be even.
✓ Each lift passes the test of 115% dynamic load and 150% static load, safe and reliable.
✓ Bright’s lift is equipped with product liability insurance globally.
Installation Requirements
The addition of the Jacking beam must be used in conjunction with the Crossbeam assembly.
The Crossbeam assembly is already included in the listed price.
Special in-ground installation drawings must also be used.
Technical data
| W52 | |
| Main lifting capacity | 5500kg |
| Lift table lifting capacity | 2200kg |
| Lifting time | 50s |
| Lowering time | 50s |
| Motor power | 3kw |
| Platform length | 5200mm |
| Main lift lifting height | 2030mm |
| Minimum height | 195mm |
| Lift table lifting height | 365mm |
| Total width | 2350mm |
| Total weight | 3055kg |
| Package size (main body) | 5300*775*750mm |
| Package size (control box) | 600*500*1300mm |
| Package size (accessory box) | 1240*640*350mm |
